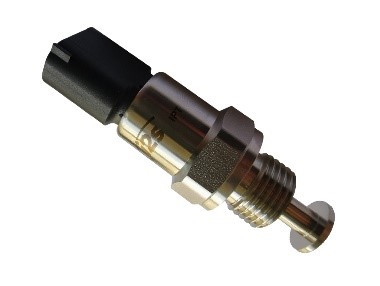

Medium pressure sensor

Product Features：

a. Pressure circumference: 0~25bar;

b. Supply voltage: DC 5V±0.25V;

c. Signal Output: Analog-Output;

d. Current: <7.5mA

e. Maximum pressure: 40bar;

f. Burst pressure: 60bar;

g. Accuracy:

-40℃~-25℃ max ±3.0%FS; -25℃~+20℃ max ±2.5%FS;

20℃~+95℃ max ±1.5%FS; 95℃~+125℃ max ±2.5%FS;

h. Working temperature: -40℃~125℃;

i. Storage temperature: -40℃~125℃;

j. Connector: MQS;

k. Installation torque: 15Nm+1.5N;

l. Test standard: EC79/HGV3.1;

Note: 1. The specific model P/N needs to be determined according to the customer; 2. Please refer to the specification for specific parameters.
